Products
  • 10-40450-10S
RoHS II compliantHalogenfreeProtection class according DIN EN 60529 / IP65

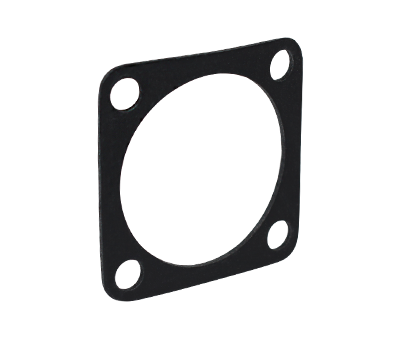

Sealing gasket for receptacle, front panel mount, conductive

Item number: 10-40450-10S
  • Dimensional drawing
    • d1 (Ø): 15.9
    • L1 (mm): 25.4
    • L2 (mm): 18.2
    • H1 (mm): 0.5
    • T1 (mm): 4.4
  • Mechanical properties
    • Size: 10SL
    • EMI: Yes
    • Material sealing ring: Alu-Flex
  • Download Product Information
