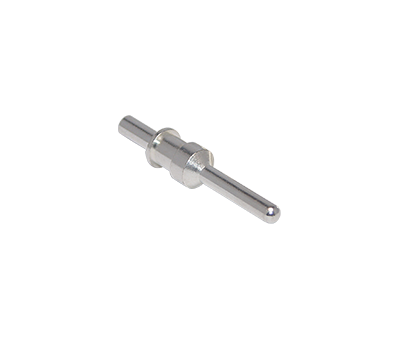

Pin contact size 8H, 10mm²
Item number: 10-40794-50AG
- D1 (Ø): 7.8
- D2 (Ø): 6.35
- D3 (Ø): 3.6
- d1 (Ø): 4.6
- L1 (mm): 41
- T1 (mm): 12.2
- Contact type: Pin
- Strand/wire adaptation: Crimp
- Contact Material: CU alloy
- Protective layer: silver plated, 3.5µm
- Wire section (mm²): 10
- Wire section (AWG): 8 - 6
- Stripping length (mm): 13.0
- Nominal current (A): 56
- Maximal current (A): 90
- Test current (A): 72
