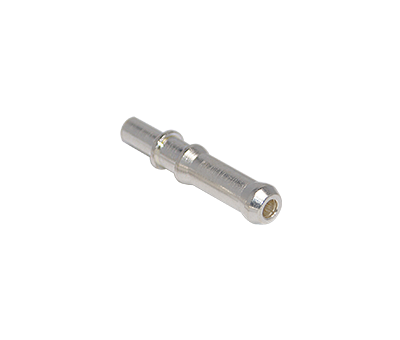

Socket contact size 8H, 6.0mm²
Item number: 10-40796-38AG
- D1 (Ø): 7.8
- D2 (Ø): 5
- d1 (Ø): 3.55
- d2 (Ø): 3.6
- L1 (mm): 38
- T1 (mm): 8.5
- Contact type: Socket
- Strand/wire adaptation: Crimp
- Contact Material: CU alloy
- Protective layer: silver plated, 3.5µm
- Wire section (mm²): 6
- Wire section (AWG): 10
- Stripping length (mm): 9.0
- Nominal current (A): 56
- Maximal current (A): 90
- Test current (A): 72
