  • GMRC-PEC-0.50AU
gold platedREACH compliantRoHS II compliant

Contacts

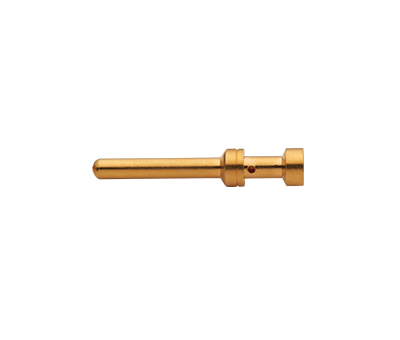

Pin contact EC series, 16A, 0.5mm²
Item number: GMRC-PEC-0.50AU
Packing unit: 100
  • Dimensional drawing
    • D1 (Ø): 2.5
    • D2 (Ø): 4.5
    • D3 (Ø): 2.6
    • d1 (Ø): 1.15
    • L1 (mm): 25.0
    • T1 (mm): 7.5
  • Mechanical properties contacts
    • Contact type: Pin
    • Strand/wire adaptation: Crimp
    • Number of mating cycles (min.): 500
    • Contact Material: CU alloy
    • Protective layer: gold plated
    • Wire section (mm²): 0.5
    • Wire section (AWG): 20
    • Stripping length (mm): 7.5
  • Electrical properties contacts
    • Nominal current (A): 16
