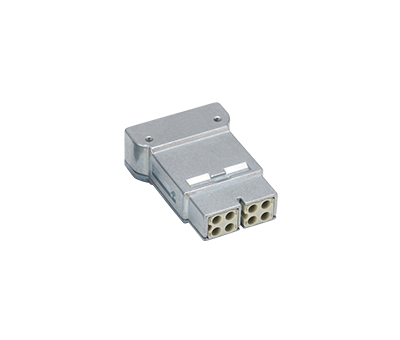

MegaBit module 2 x 4 pole, socket, 50V, 10A
Number of slots: 1
Item number: GMRM-MB-8SZC-AMG
Packing unit: 1
- B1 (mm): 24.1
- B2 (mm): 32.4
- H1 (mm): 45.3
- L1 (mm): 13.9
- Number of slots: 1
- Number of contacts: 8 (2 x 4)
- Contact type: Socket
- Shell material: Zinc cast
- Surface treatment: Passivated
- Number of mating cycles (min.): 500
- Clamping range (mm): 5 - 12
- REACH compliant: SVHC substances, yes - Lead
- ROHS compliant: Compliant acc. to 2015/863/EU (RoHS II), Annex II
- Material contact insert: Polycarbonate (PC)
- Operating temperature: -40°C - +85°C
- Fire protection class UL94: V0
-
Fire protection class DIN EN 45545-2: R22/HL1,HL2
R23,24/HL1,HL2,HL3
- Rated current (A): 10
- Operating voltage (V): 50
- Rated impulse voltage (kV): 0.8
- Insulation resistance (Ω): ≤0.004
- Pollution degree: 3
