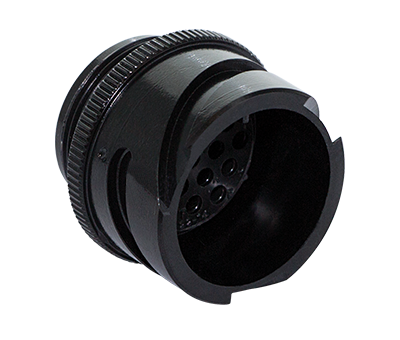

Cable receptacle
Series GR
Item number: GR11-14S-A7PN-EAA
Packing unit: 1
- D1 (Ø): 24.6
- D2 (Ø): 29.0
- L1 (mm): 25.0
- L2 (mm): 14.2
- L3 (mm): 3.2
- N1: 3/4"-20 UNEF 2A
- X1 (mm): 9.0
- Size: 14S
- Contact type: Pin
- Shell material: Aluminum alloy
- Surface treatment: Zinc
- Type of surface: passivated
- Thickness of surface treatment: 12-15µ
- Surface colour: black
- Corrosion resistance (h): 200
- Operation temperature: -55°C - +90°C
- Temperature shock: -55°C - +125°C
- Conductivity (MΩ): ≤ 0.5
- EMI: Yes
- Coupling-torque to lock (Nm): max. 1.8
- Coupling-torque to open (Nm): min. 0.55
- Material contact insert: Ethylene acrylate GXF
- Operating temperature: -55°C - +150°C
- Fire protection class DIN EN 45545-2: R23/HL3
- Operating voltage DC (V): 250
- Operating voltage AC (V): 200
- Test voltage AC (V): 1000
- Insulation resistance (Ω m): ≥ 5000
- Insulation creepage distance (mm): ≥ 1.6
- Voltage class: MIL-DTL-5015
- Size 16S - nominal current (A): 13
- Size 16S - maximal current (A): 22
- Size 16S - test current (A): 20
