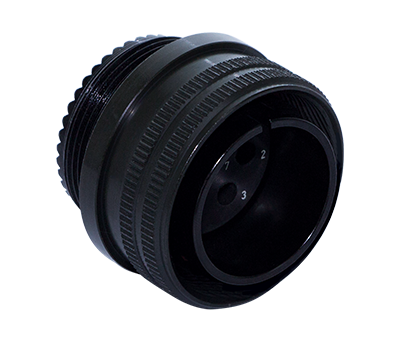

Plug with threaded coupling nut
Series GT
Item number: GT60-10SL-3SN-EAC
Packing unit: 1
- D1 (Ø): 25.0
- L1 (mm): 24.6
- N1: 5/8"-24 UNEF 2A
- N2: 5/8"-24 UNEF 2B
- X1 (mm): 9.0
- Size: 10SL
- Contact type: Socket
- Shell material: Aluminum alloy
- Surface treatment: Zinc
- Type of surface: passivated
- Thickness of surface treatment: 12-15µ
- Surface colour: black
- Corrosion resistance (h): 200
- Operation temperature: -55°C - +90°C
- Temperature shock: -55°C - +125°C
- Conductivity (MΩ): ≤ 0.5
- Coupling-torque to lock (Nm): max. 1.7
- Coupling-torque to open (Nm): min. 0.45
- Material contact insert: Ethylene acrylate GXF
- Operating temperature: -55°C - +150°C
- Fire protection class DIN EN 45545-2: R23/HL3
- Operating voltage DC (V): 700
- Operating voltage AC (V): 500
- Test voltage AC (V): 2000
- Insulation resistance (Ω m): ≥ 5000
- Insulation creepage distance (mm): ≥ 3.2
- Voltage class: MIL-DTL-5015
- Size 16S - nominal current (A): 13
- Size 16S - maximal current (A): 22
- Size 16S - test current (A): 20
