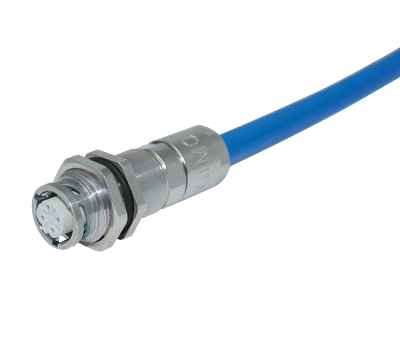

GTB12 Bulkhead receptacle, d-code
according EN 61076-2-011
Item number: GTB12-D-4-FS-BR
Net weight: 0.0393 kg
- D2 (Ø): 15.0
- L1 (mm): 50.0
- L2 (mm): 15.3
- L3 (mm): 5.5
- N1: M12x1
- N2: M16x1.5
- SW1: 18
- Design: Bulkhead receptacle
- Version: Straight
- Coding: D
- Number of contacts: 4
- Strand/wire adaptation: Crimp
- Contact type: Socket contact
- Wire section (mm²): 0.34 - 0.5
- Wire section (AWG): 22 - 20
- Contact Material: 0.4µ AU over copper alloy
- Shell material: Brass
- Surface treatment: Electroless nickel
- Operation temperature: -55°C - +85°C
- EMI: Yes
- Cable diameter (mm): 5.0 - 8.5
- Cable strain relief: Cable gland
- EMC shielding: EMI spring
- Number of mating cycles (min.): 200
- ROHS compliant: compliant with exception 6c (copper alloy ≤ 4% lead)
- REACH compliant: SVHC substances, yes - Lead
- Material contact insert: Latamid 6H-V0
- Operating temperature: -55°C - +85°C
- Fire protection class DIN EN 45545-2: R23: HL1/HL2/HL3
- Fire protection class NFF16-101/102: I2/F2
- Insulation resistance (Ω): ≥ 108
- Potential drop between contacts and housing (KV): 1.4
- Potential drop across contacts (KV): 1.4
- Data transfer speed: 10/100 Mbits/s - Cat5e
- Pollution degree: 3
- Rated surge voltage (KV): 2.5
- Rated voltage (VDC): 250
- Rated current (A): 4
