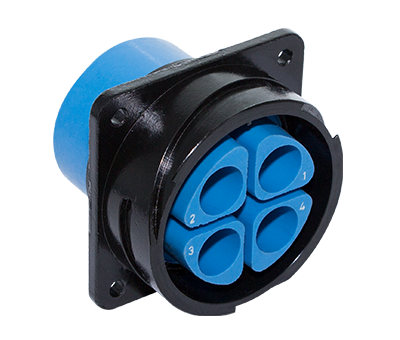

Receptacle front panel mount, for higher voltages, Series GB
Indoor and Outdoor use, up to 1200VAC/200A, contact size 0, 0*
Item number: GB210-40-A4PN-SAC
Net weight: 0.1661 kg
- D1 (Ø): 66.0
- L1 (mm): 60.0
- L2 (mm): 38.0
- L3 (mm): 4.0
- N1: 2 5/16"-16 UN 2A
- T1 (mm): 4.4
- X1 (mm): 11.3
- X2 (mm): 22.2
- S1 (mm): 70.0
- R1 (mm): 55.6
- Size: 40
- Contact type: Pin
- Number of contacts, size 0: 4
- Shell material: Aluminum alloy
- Surface treatment: Epoxy-polyurethane
- Type of surface: varnished
- Thickness of surface treatment: 13-16µ
- Surface colour: black
- Corrosion resistance (h): 500
- Operation temperature: -55°C - +125°C
- Temperature shock: -55°C - +200°C
- Conductivity (MΩ): non conductive
- Material sealing ring: Silicone
- Coupling-torque to lock (Nm): max. 10.0
- Coupling-torque to open (Nm): min. 5.9
- Material contact insert: Silicone
- Operating temperature: -55°C - +150°C
- Fire protection class DIN EN 45545-2: R23/HL2
- Fire protection class UL94: V0
- Operating voltage DC (V): 1250
- Operating voltage AC (V): 750
- Test voltage AC (V): 2800
- Insulation resistance (Ω m): ≥ 5000
- Voltage class: ABB
- Contact numbers: All
- Operating voltage DC (V): 1750
- Operating voltage AC (V): 1250
- Test voltage AC (V): 3500
- Insulation resistance (Ω m): ≥ 5000
- Insulation creepage distance (mm): ≥ 6.3
- Voltage class: MIL-DTL-5015
- Size 0 - nominal current (A): 200
- Size 0 - maximal current (A): 300
- Size 0 - test current (A): 240
- Size 0* - nominal current (A): 200
- Size 0* - maximal current (A): 300
- Size 0* - test current (A): 240
