  • GMRF-500-16-64PEC-24
  • GMRF-500-16-64PEC-24
UK Conformity Assessed (UKCA)Achieve acc. fire protection class  UL94, V0Certified according to EN45545-2:2013 R22/HL1,HL2 | R23,24/HL1,HL2,HL3REACH compliantRoHS II compliant

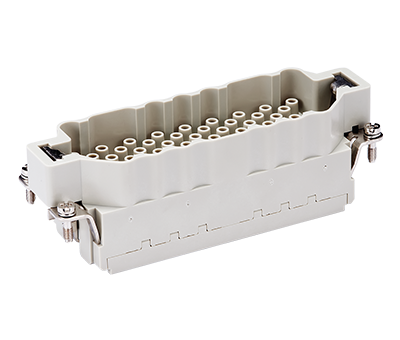

Fixed pole insert 64 poles, pin, 500V, 16A

Size 24
Item number: GMRF-500-16-64PEC-24
Packing unit: 1

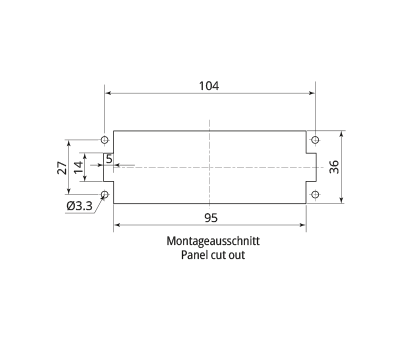

  • Dimensional drawing
    • B1 (mm): 33.8
    • B2 (mm): 27.0
    • H1 (mm): 36.2
    • H2 (mm): 21.2
    • H3 (mm): 1.2
    • L1 (mm): 111.0
    • L2 (mm): 104.0
  • Technical characteristics
    • Number of contacts: 64 + PE
    • Contact type: Pin
    • Number of mating cycles (min.): 500
    • REACH compliant: SVHC substances, no
    • ROHS compliant: Compliant
  • Thermal properties
    • Material contact insert: Polycarbonate (PC)
    • Operating temperature: -40°C - +125°C
    • Fire protection class UL94: V0
    • Fire protection class DIN EN 45545-2: R22/HL1,HL2
      R23,24/HL1,HL2,HL3
  • Electrical properties
    • Rated current (A): 16
    • Operating voltage (V): 500 (PD2 = 830)
    • Rated voltage acc. to UL/CSA (V): 600
    • Rated impulse voltage (kV): 6 (PD2 = 8)
    • Insulation resistance (Ω): ≥1010
    • Pollution degree: 3
