  • GMRH-24BS-BK-IF
  • GMRH-24BS-BK-IF
UK Conformity Assessed (UKCA)Protection class according DIN EN 60529 / IP69REACH compliantRoHS II compliant

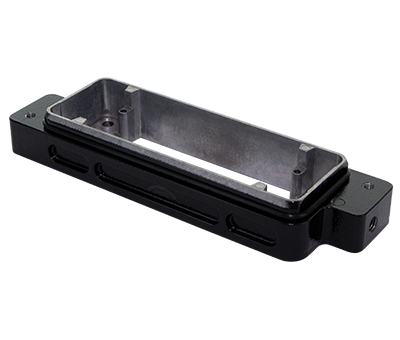

Bulkhead mounted housing, size 24 B

Insert mounted from the front
Item number: GMRH-24BS-BK-IF
Packing unit: 1
  • Dimensional drawing
    • B3: 32
    • B1 (mm): 58
    • B2 (mm): 39
    • H1 (mm): 29
    • L1 (mm): 192
    • L2 (mm): 173
    • L3 (mm): 130
  • Technical characteristics
    • Number of slots: 6 modules
    • Shell material: Aluminium die-cast
    • Surface treatment: Powder-coated
    • Surface colour: RAL 9005 (jet black)
    • Locking mode: Screw locking
    • Operation temperature: -40°C - +125°C
    • Material sealing ring: Nitrile Butadiene Rubber (NBR)
    • Number of slots: 6 modules
    • Ground connection: Yes
    • REACH compliant: SVHC substances, yes - Lead
    • ROHS compliant: Compliant acc. to 2015/863/EU (RoHS II), Annex II
