  • GMRM-1000-40-2PCC-01
UK Conformity Assessed (UKCA)Achieve acc. fire protection class  UL94, V0Certified according to EN45545-2:2013 R22/HL1,HL2 | R23,24/HL1,HL2,HL3REACH compliantRoHS II compliant

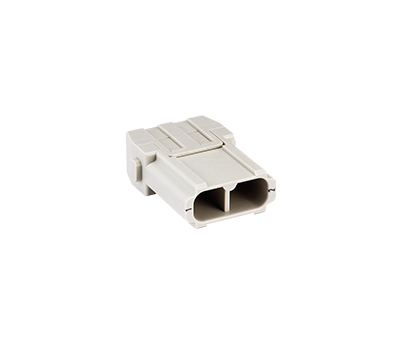

Module 2 pole, pin, 1000V, 40A

Number of slots: 1
Item number: GMRM-1000-40-2PCC-01
Packing unit: 1
  • Dimensional drawing
    • B1 (mm): 34.2
    • H1 (mm): 43.7
    • L1 (mm): 14.6
  • Technical characteristics
    • Number of slots: 1
    • Number of contacts: 2
    • Contact type: Pin
    • Number of mating cycles (min.): 500
    • REACH compliant: SVHC substances, no
    • ROHS compliant: Compliant
  • Thermal properties
    • Material contact insert: Polycarbonate (PC)
    • Operating temperature: -40°C - +125°C
    • Fire protection class UL94: V0
    • Fire protection class DIN EN 45545-2: R22/HL1,HL2
      R23,24/HL1,HL2,HL3
  • Electrical properties
    • Rated current (A): 40
    • Operating voltage (V): 1000
    • Rated impulse voltage (kV): 8
    • Insulation resistance (Ω): ≥1010
    • Pollution degree: 3
