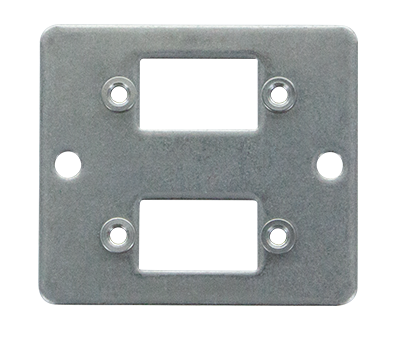

  • SUSS09-5-2
RoHS II compliantSuitable for EMI applications

Fixing plate size 1 - (up to 2 connector)

with M3 fixing rivets
Item number: SUSS09-5-2
  • Dimensional drawing
    • d1 (Ø): 4.1
    • L1 (mm): 50.0
    • L2 (mm): 41.0
    • L3 (mm): 25.0
    • N1: M3
    • H1 (mm): 44.0
  • Technical characteristics
    • Size: 1
    • Shell material: Stainless steel
    • Material trhickness (mm): 1.5
    • EMI: Yes
    • Operation temperature: -55°C - +105°C
