Receptacle front panel mount, for higher voltages, Series GV
Indoor and Outdoor use, up to 1000VAC/46A, contact size 8H

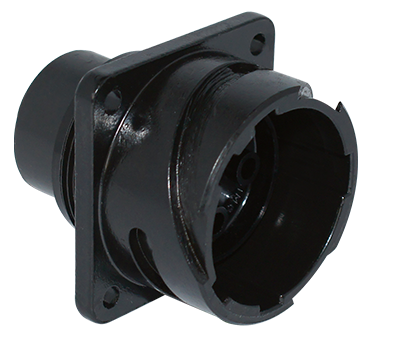

Item number: GV210-40-A16PN-EAC
- D1 (Ø): 66.0
- L1 (mm): 50.0
- L2 (mm): 37.5
- L3 (mm): 4.0
- N1: 2 5/16"-16 UN 2A
- T1 (mm): 4.3 / M5
- X1 (mm): 11.3
- X2 (mm): 22.2
- S1 (mm): 70.0
- R1 (mm): 55.6
- Size: 40
- Contact type: Pin
- Number of contacts, size 8H: 16
- Shell material: Aluminum alloy
- Surface treatment: Epoxy-polyurethane
- Type of surface: varnished
- Thickness of surface treatment: 13-16µ
- Surface colour: black
- Corrosion resistance (h): 500
- Operation temperature: -55°C - +125°C
- Temperature shock: -55°C - +125°C
- Conductivity (MΩ): non conductive
- EMI: No
- Material sealing ring: Silicone
- Coupling-torque to lock (Nm): max. 10.0
- Coupling-torque to open (Nm): min. 5.9
- Material contact insert: Ethylene acrylate GXF
- Operating temperature: -55°C - +150°C
- Fire protection class DIN EN 45545-2: R23/HL3
- Fire protection class: S4/SR2/ST2 / -
- Fire protection class NFF16-101/102: I3/F0 - I3-F3
- Fire protection class UL94: V0 / -
- Operating voltage DC (V): 1000
- Insulation resistance (Ω m): ≥ 5000
- Size 8H - nominal current (A): 56
- Size 8H - maximal current (A): 90
- Size 8H - test current (A): 72
